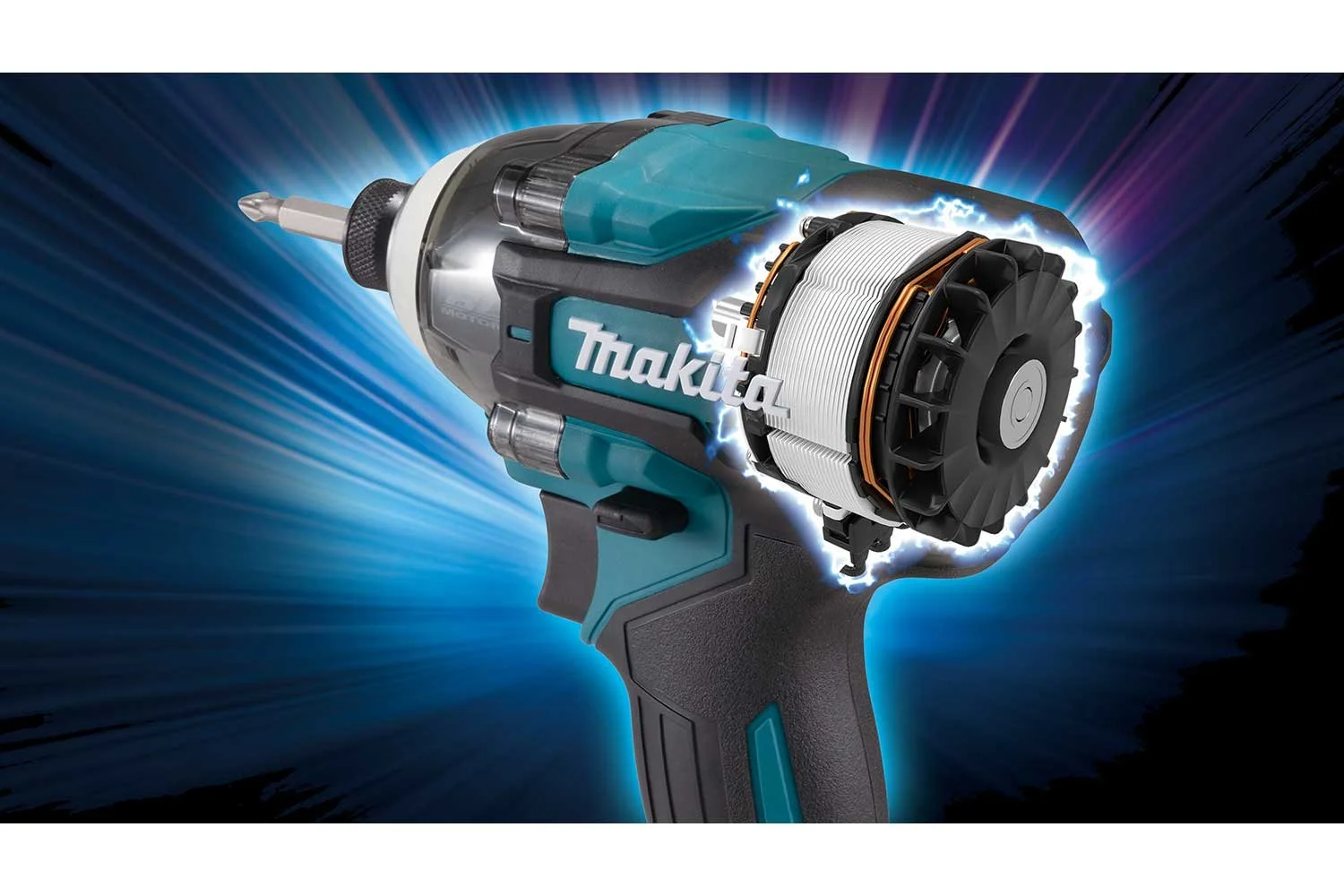

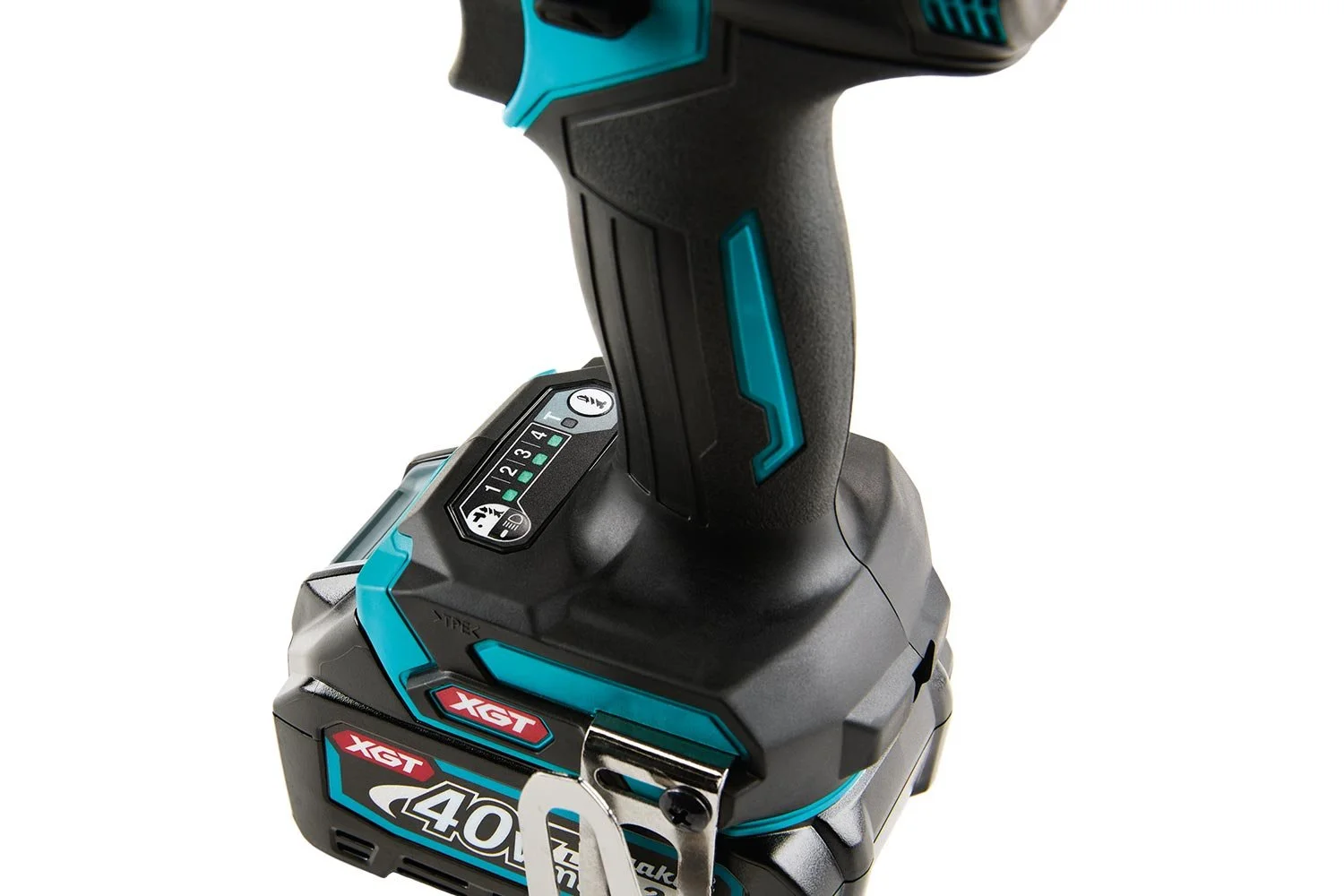

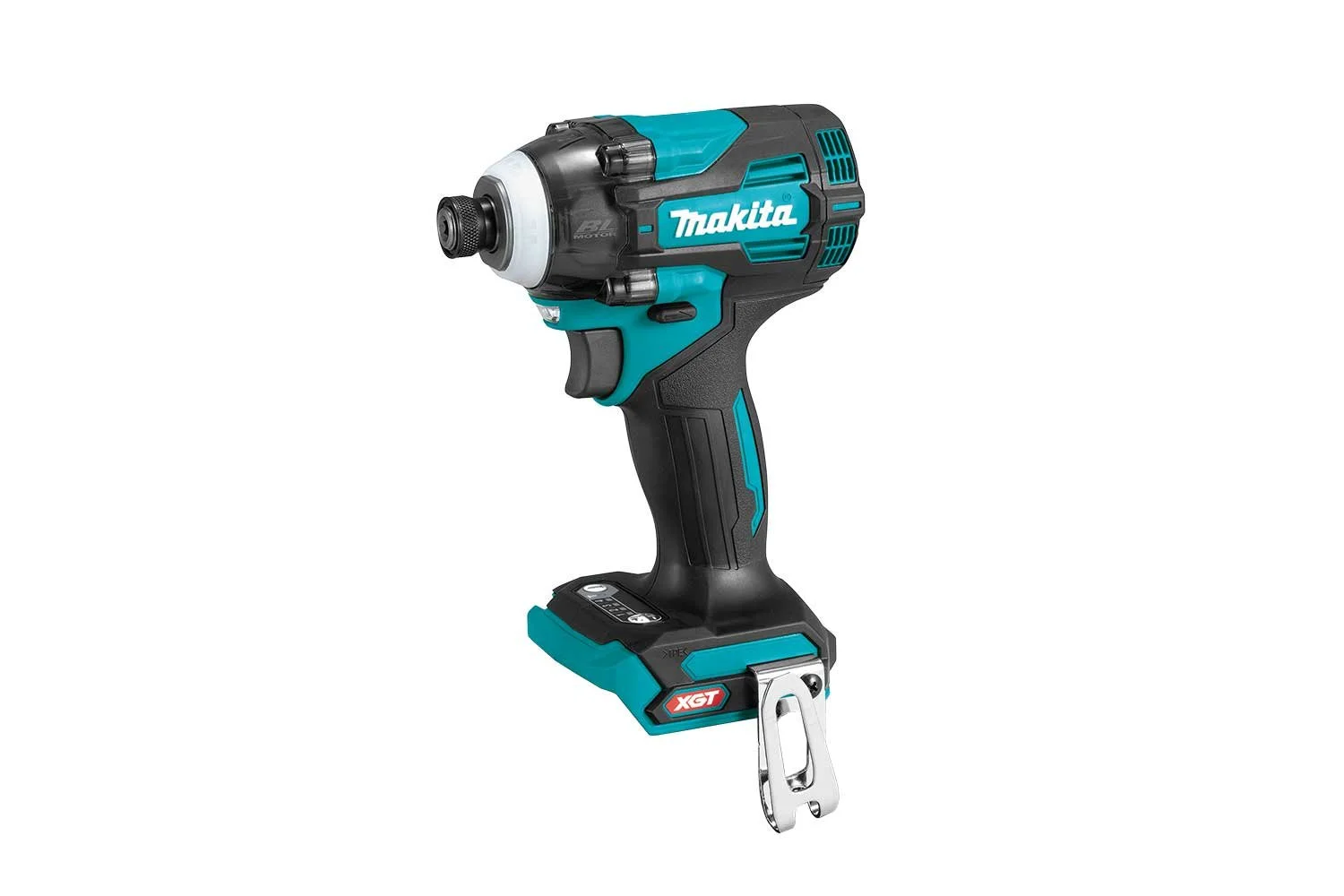

TD004GZ 40Vmax XGT Brushless High Torque Impact Driver

• Heavy duty power with 230Nm max. fastening torque

• High rotational speed delivers superior fastening performance in demanding applications

• Precision fastening with enhanced anvil stability for reduced bit wobble

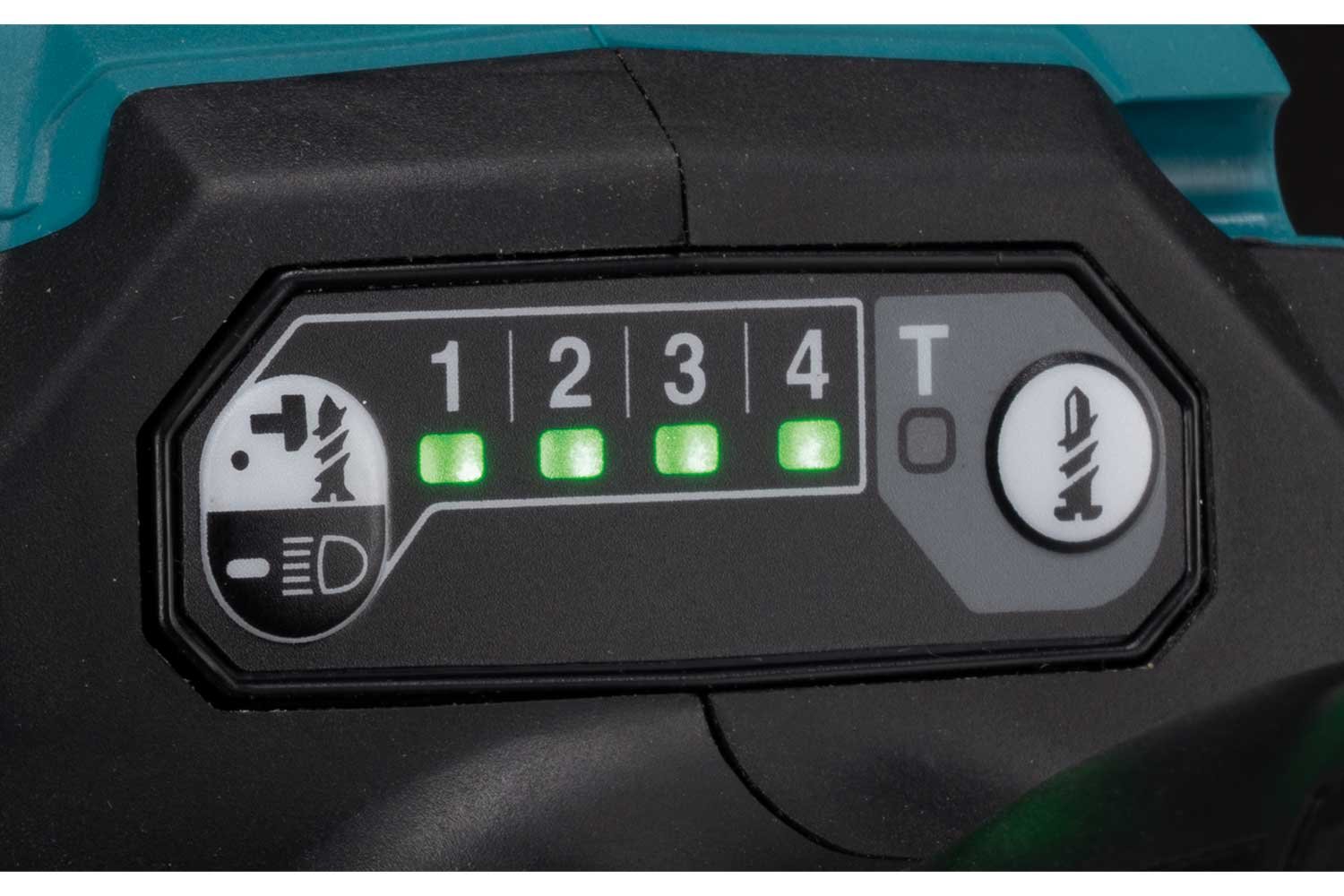

• T-Mode for thin metal fastening applications reduces screw stripping for cleaner, more consistent results

Specifications

Capacities

- Machine screw M4-M8

- Standard bolt M5-M20

- High tensile bolt M5-M14

- Coarse thread 22-150mm

Max fastening torque 230Nm

Impacts per minute

- Max 0-3,900ipm

- Hi 0-3,600ipm

- Med 0-3,100ipm

- Lo 0-1,900ipm

No Load Speed

- Max 0-3,900rpm

- Hi 0-3,000rpm

- Med 0-2,100rpm

- Lo 0-1,200rpm

Collet 6.35mm - 1/4" Hex

Overall dimensions 136mm

Net weight (skin) 1.1kg

Sound Level 100dB(A)

Max power output 600W

Voltage 40V

XGT battery compatibility 2Ah 2.5Ah 4Ah 5Ah 8Ah

 All product and accessory specifications are subject to change without notice.

Available options

TD004GZ skin, tool only

Included accessories

Belt Hook (346317-0)

Optional accessories

Impact XPS™

Batteries & chargers

40Vmax XGT Batteries & Chargers
