M12C4PLA0C M12™ CROSS + 4 POINTS LASER (TOOL ONLY)

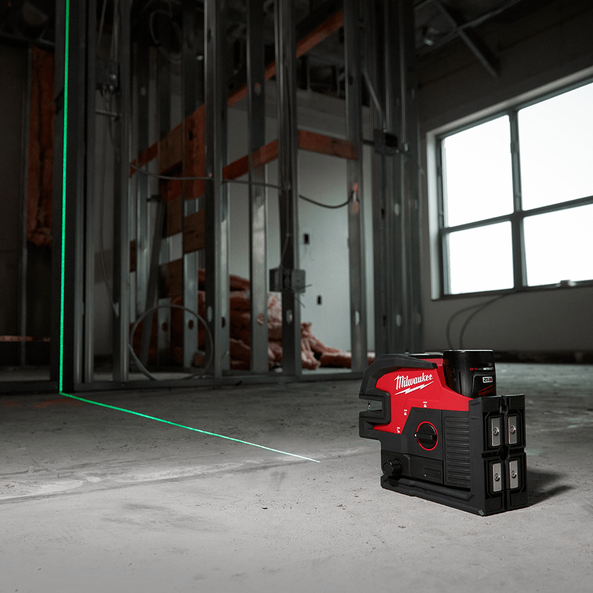

Our M12™ Green Cross Line & 4-Points Laser provides all-day runtime and the best visibility in its class. Using our M12™ REDLITHIUM™-ION 3.0Ah Compact Battery (M12B3 sold separately), users get 9+ hours of continuous runtime for ultimate productivity. The high-intensity green laser offers our users superior visibility up to 38 Meters for long-range applications. The vertical and horizontal lines make alignment and level applications easy for our users, while the additional 4-points allow for quick transfers from floor to ceiling and squaring applications. The integrated magnetic bracket features micro-control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a stronghold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As part of the industry-leading M12™ System, our laser is compatible with all M12™ Batteries.
Our M12™ Green Cross Line & 4-Points Laser provides all-day runtime and the best visibility in its class. Using our M12™ REDLITHIUM™-ION 3.0Ah Compact Battery (M12B3 sold separately), users get 9+ hours of continuous runtime for ultimate productivity. The high-intensity green laser offers our users superior visibility up to 38 Meters for long-range applications. The vertical and horizontal lines make alignment and level applications easy for our users, while the additional 4-points allow for quick transfers from floor to ceiling and squaring applications. The integrated magnetic bracket features micro-control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a stronghold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As part of the industry-leading M12™ System, our laser is compatible with all M12™ Batteries.
Our M12™ Green Cross Line & 4-Points Laser provides all-day runtime and the best visibility in its class. Using our M12™ REDLITHIUM™-ION 3.0Ah Compact Battery (M12B3 sold separately), users get 9+ hours of continuous runtime for ultimate productivity. The high-intensity green laser offers our users superior visibility up to 38 Meters for long-range applications. The vertical and horizontal lines make alignment and level applications easy for our users, while the additional 4-points allow for quick transfers from floor to ceiling and squaring applications. The integrated magnetic bracket features micro-control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a stronghold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As part of the industry-leading M12™ System, our laser is compatible with all M12™ Batteries.
FEATURES
All Day Runtime - 9+ Hours
Brightest Green Laser Optimized for Distance
Micro Control - Pivots on Point
Vertical & horizontal lines plus 4-points to level, align, plumb and square.
38 Meter Working Range
50 Meters Range with Detector
Accuracy: ± 3.18 mm over 10 m
Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
210 Degree Horizontal Fan Angle, 165 Degree Vertical Fan Angle
50mm Plumb Point Access
Self Leveling: +/- 4° Tilt
IP54 Rated: Water and Dust Resistant
1m Impact Resistance
1/4 - 20 & 5/8-11 Thread Mount
3 Year Tool Warranty
SPECIFICATIONS
PLATFORM M12™
IP RATINGS IP54
DIMENSIONS 170 x 149 x 81mm
WEIGHT 1.02kg
WARRANTY 3 Year Tool
NUMBER OF BEAMS Vertical & horizontal lines plus 4-points to level, align, plumb and square
LOCKING PENDULUM Yes
SELF-LEVELING ± 4° Tilt
ACCURACY ± 3.18mm over 10m
IMPACT RESISTANT 1m
WORKING RANGE 38m
RANGE WITH DETECTOR 50m
THREAD MOUNT 1/4"-20, 5/8"-11
WHAT'S INCLUDED
(1) M12™ Cross + 4 Points Laser [M12C4PLA0C]
(1) Carrying Case
