LS002GZ01 40Vmax XGT Brushless 216mm (8-1/2") Slide Compound Mitre Saw
Forward Rail Design for smooth precise cutting
Expandable sub-table for improved stability when cutting long material
Shadow line projects cut line onto work material

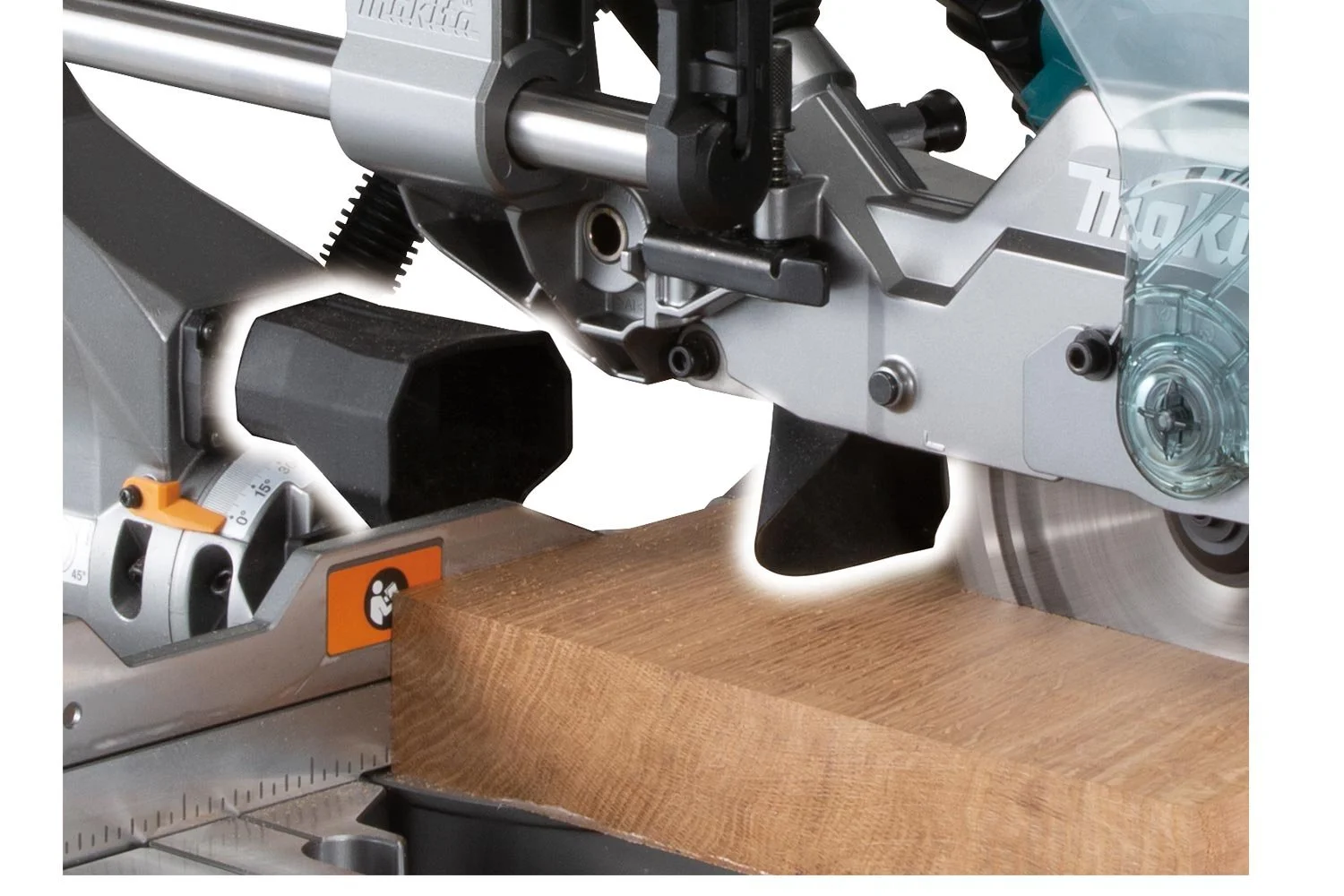

Dual zone dust extraction ports supress dust scattering of wood chips
Compatible with AWS* for wireless connectivity with compatible dust extraction
Forward Rail Design for smooth precise cutting
Expandable sub-table for improved stability when cutting long material
Shadow line projects cut line onto work material
Dual zone dust extraction ports supress dust scattering of wood chips
Compatible with AWS* for wireless connectivity with compatible dust extraction
Forward Rail Design for smooth precise cutting
Expandable sub-table for improved stability when cutting long material
Shadow line projects cut line onto work material
Dual zone dust extraction ports supress dust scattering of wood chips
Compatible with AWS* for wireless connectivity with compatible dust extraction
Specifications
Blade diameter 216mm
Max cutting capacity
- at 90° 70 x 312mm
- at 45° 50 x 220mm - at 30 x 220mm
Bevel angle 48°
No load speed 4,800rpm
Overall dimensions 702 x 551 x 557mm
Net weight 16.4kg
Sound Level 100dB(A)
Continuous rating input 1,000W
Voltage 40V
XGT battery compatibility2Ah 2.5Ah 4Ah 5Ah
All product and accessory specifications are subject to change without notice.
Available options
LS002GZ01
Skin tool
LS002GM101
4.0Ah battery (BL4040), rapid charger (DC40RA), Efficut 216 x 45T(E-06993) and AWS chip
Included accessories
Efficut Saw Blade (E-06993), Dust Bag, Triangular Rule (762001-3), Vertical Vise, Hex Wrench and (191U61-8) Sub base assembly
Optional accessories
Horizontal Vise (122567-9)
