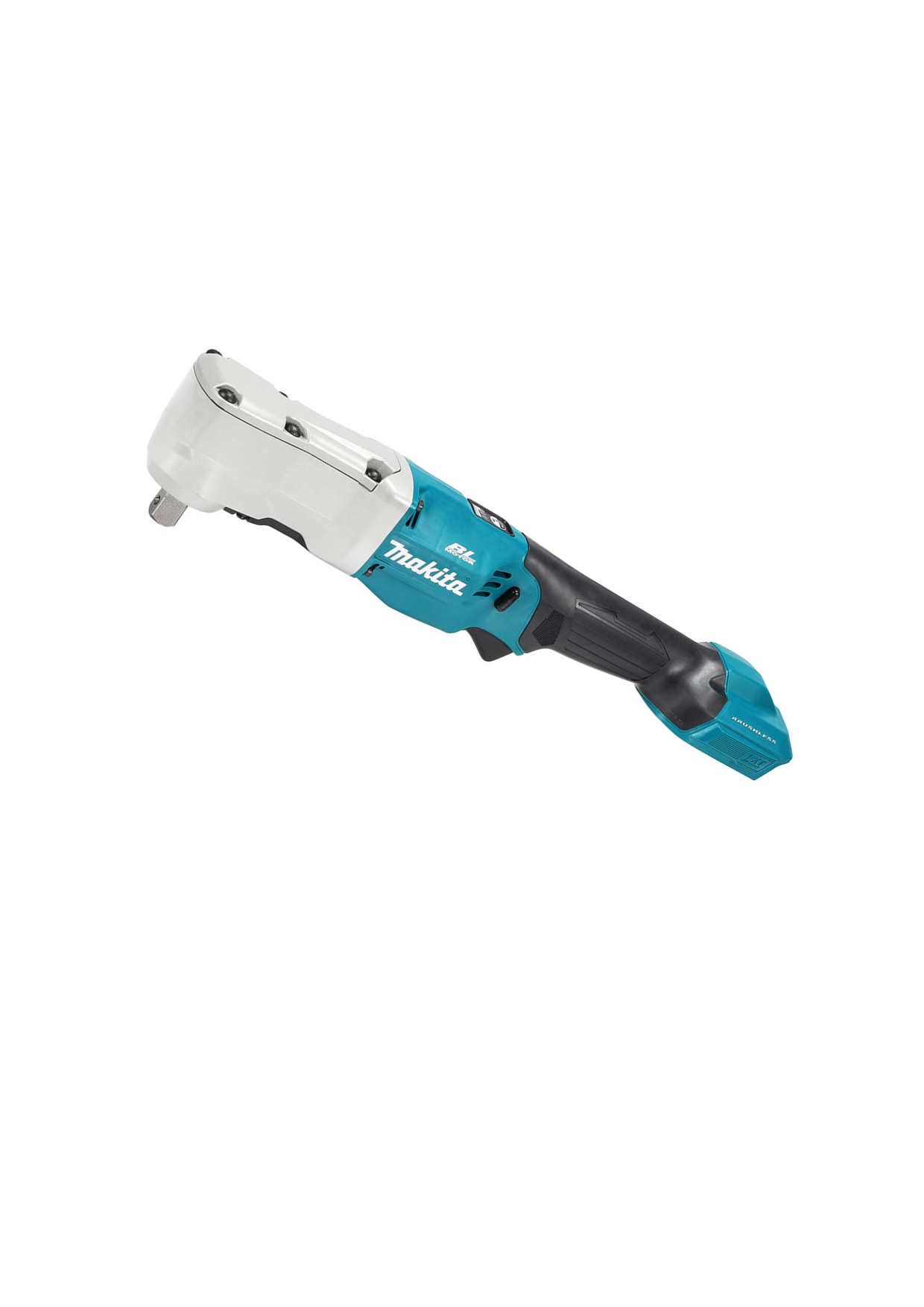

DTL301Z 18V LXT Brushless ½" Right Angle Impact Wrench - Detent Pin

• The powerful brushless motor provides up to 530Nm of breakaway torque and 340Nm of fastening torque

• Three selectable power modes in both forward and reverse for various fastening & loosening applications

• Auto-stop mode for forward and reverse rotation to prevent over tightening or over loosening of fasteners

• Features a ½" anvil with detent pin for strong and secure impact socket fitment

Specifications

Capacities

- Standard bolt M10-M20

- High tensile bolt M10-M16

Max fastening torque 340Nm (w/BL1860B)

Nut

-busting torque 530Nm (w/BL1860B)

Impacts per minute

- Hi 0-4,000ipm

- Med 0-2,800ipm

- Lo 0-1,800ipm

No Load Speed

- Hi 0-3,200rpm

- Med 0-1,500rpm

- Lo 0-1,000rpm

Anvil 12.7mm (1/2") Square Drive Detent Pin

Net weight (skin) 1.42kg

Voltage 18V

LXT battery compatibility 1.5Ah 2Ah 3Ah 4Ah 5Ah 6Ah 9Ah 12Ah

All product and accessory specifications are subject to change without notice.
